Create Entity in GUMU™ SAGE X3 Integration – Lightning Interface

By | October 10, 2019

In this blog, we will discuss how user can create a new Entity (for use in the import routine) in Salesforce using new lightning interface of GUMU™ & Sage X3 Web service API method.

The prerequisite of any integration is to map the data between the two systems. GUMU™, reads the table schema using Sage X3 Web Service API method and validate mapping details like field name, field label, data type that you can see under the mapping tab of the Import.

Let’s walk you through the process of creating a new entity and get the real-time schema of ERP object. Once you have installed the GUMU™ integration product in your Salesforce organization follow the below steps:

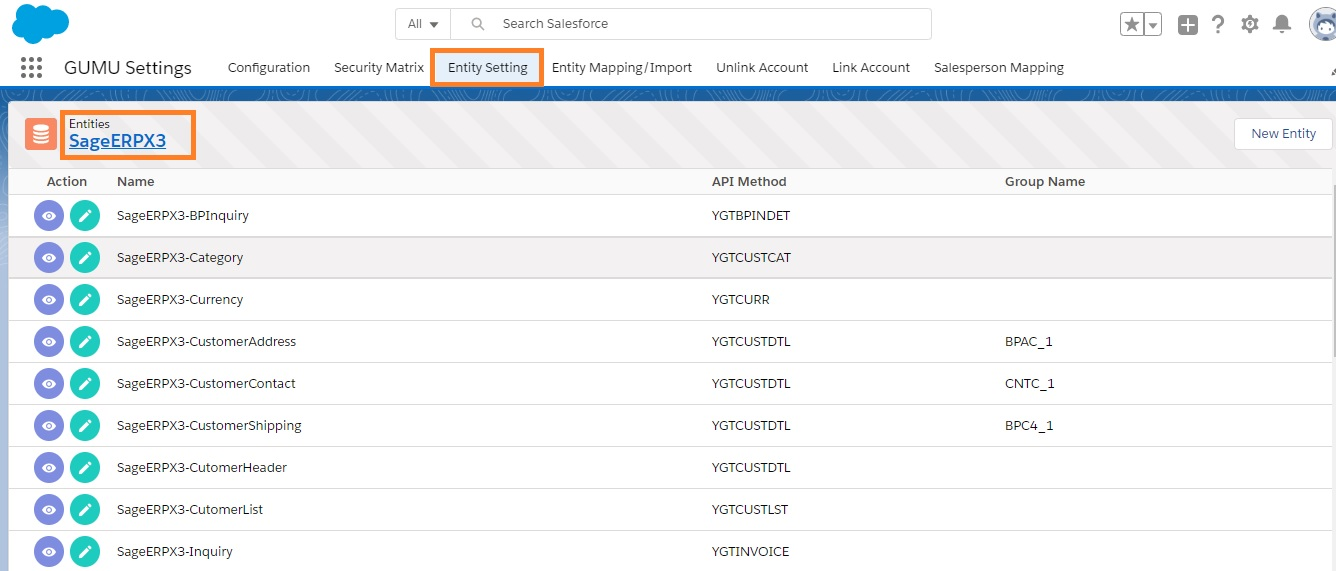

  • Login to Salesforce
  • Go to App Launcher Menu and select “GUMU Settings” App.
  • Click on “Entity Setting” menu.
Entity Setting
Entity Setting

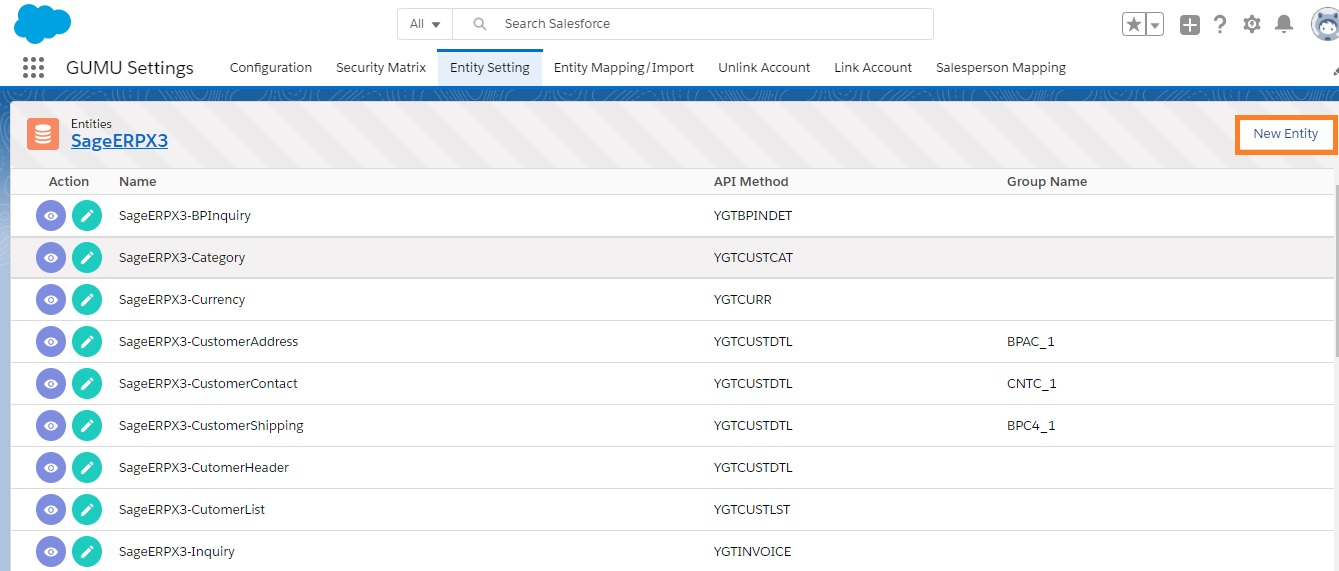

  • You can create a new entity by clicking on “New Entity” button.
New Entity
New Entity

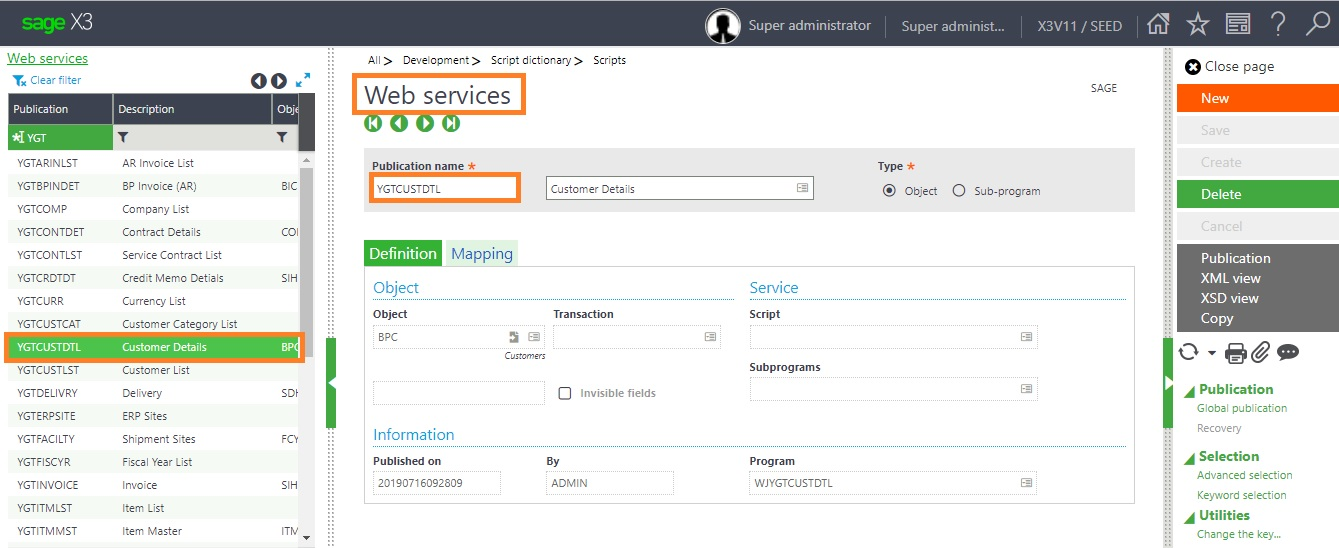

If you want to find Web service API method just follow the below steps:-
• Login to Sage X3
• Go to Development->Script dictionary->Web services
• If you need to search for a Webservice APImethod(ex:-customer) just filter it out in Description as shown in
the screenshot here.

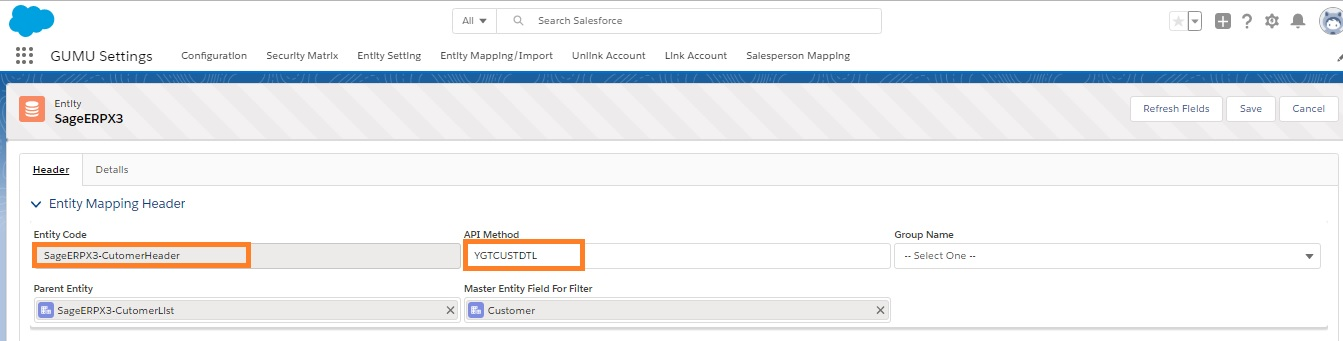

  • Now enter the “Entity Code” of your choice, preferably use the name of the entity in the same for easy identification.
  • Enter the “API Method” name obtained from the Sage X3 system, steps mentioned above.
Customer Entity
Customer Entity

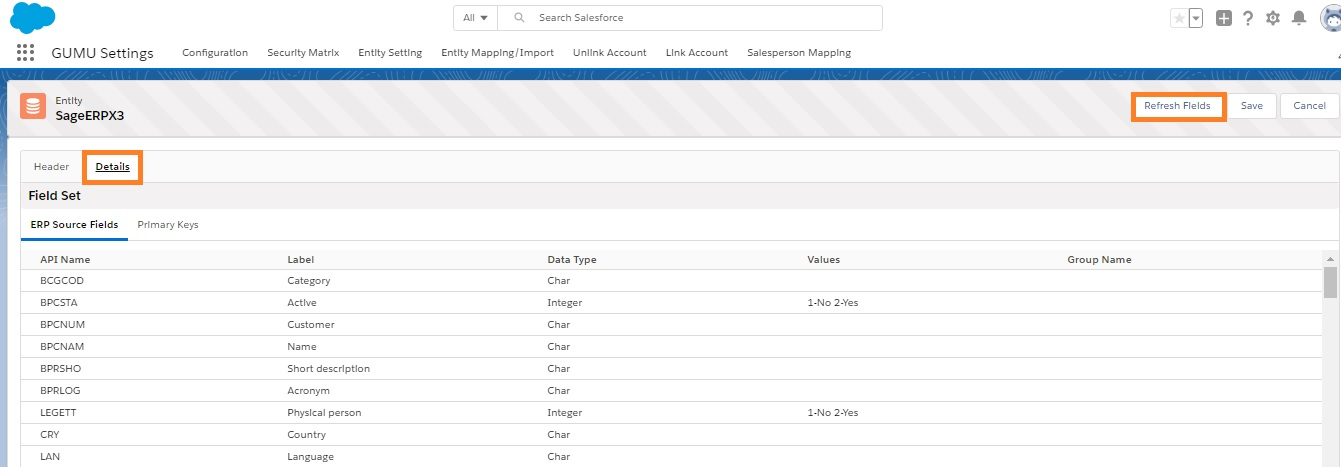

  • Now, go to the “Details” tab and click on “Refresh fields” button to get exact fields available from the Sage system for performing actions (update) from Salesforce. And finally click the “Save” button to store the schema information for use in the GUMU™ mapping functionality.
Refresh Fields
Refresh Fields

Please take a note each time you want additional data from the fields that were added to the schema after the definition was created, you will have to make sure that the Webservice API schema has been updated in Sage and you have hit the “Refresh Fields” button on the “Entity Setting”. For it to be available in the “Entity Mapping/Import” configuration.

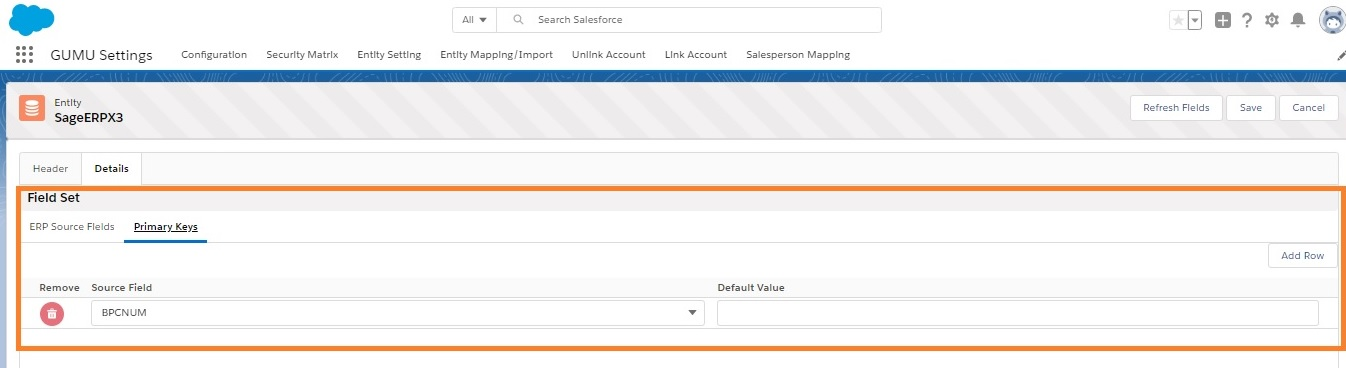

  • You can also define a primary key for Entity by selecting fields from the list as shown in below screen.
  • If you want to assign a composite key (combination of more than one field as the primary key) to the entity, you can add multiple rows under the Primary Key tab.
  • If you happen to add a primary key by mistake, you can simply check the field and hit “Delete Primary Key” button.
Primary Key
Primary Key

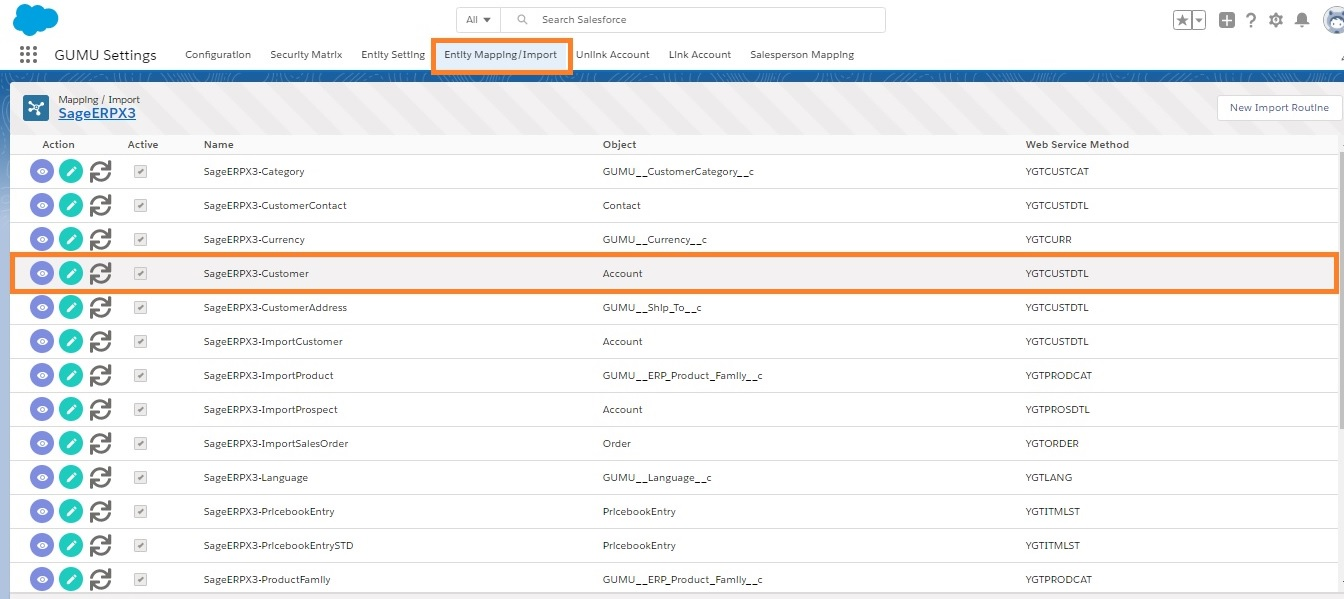

  • Once configuration is done click on save button to save the entity.
List of Entity Mapping
List of Entity Mapping

And here you have your entity created and ready for integration. This entity can now be used in the Import routine for bringing the records into Salesforce from Sage X3 ERP.

We hope you may find this blog resourceful and helpful. If you still have concerns and need more help, please contact us at salesforce@greytrix.com
