Configuring SData in Sage 100 to use it in Sage CRM – Part II

By | March 9, 2017

In our last blog, we have gone through how we can install SData option in Sage 100. Today in this blog we will discuss how we can configure and provide permissions which are required for Sage 100 user so that we can use it in Sage CRM.

New Stuff: Switch between Opportunity and Order/Quotes in Sage CRM

By simply performing below steps you can enable SData,

1. After successful installation of SData, Log into Sage 100. Go to Library Master >Setup > System Configuration > select the checkbox ‘Enable Native SData Provider and Access within Role Maintenance’ and save.

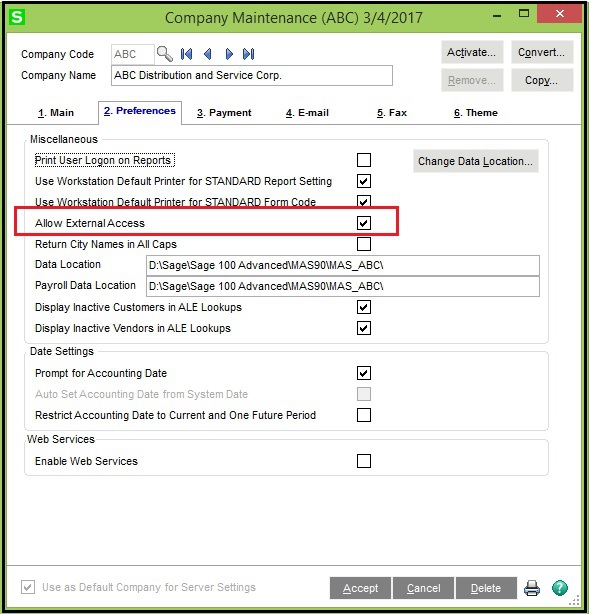

2. Go to Library Master >Main > Company maintenance > select the desired Company code > select Preference tab > select the checkbox Allow external access > and save it.

3. Finally, be sure to set SData permission within at least one Role and verify your Sage 100 user is assigned that same role.

Once you have complete setup steps, you can verify if SData is working by opening following URL in a browser. Please replace the name of your Sage 100 server and desired company code in below URL.
http://< Servername >/sdata/masapp/MasContract/< company code > /$schema

You should be prompted for a Sage 100 user name and password and then your browser should load a very long page listing the entire Sage 100 ERP schema for all the tables available in Sage 100
A few notes about the URL:

  • If using https: (SSL) be sure that your certificate matches the server name you are using/testing.
  • Make sure you enter your Sage 100 server and company code name in the URL from which you want to display data.
  • The string “$schema” will return all the tables from Sage 100 ERP.
