Troubleshoot: “Error. Failed to create landlord database tables” in Sage 300 Web Screens.

By | February 24, 2017

In the new version of Sage 300, we have been introduced to the web screens. Sage 300 ERP will now be called as Sage 300c ERP which now will be used on cloud that will make it easier to access from the web. As this is a newly introduced concept, there are chances that we might face errors during the configuration stage. In this blog we will check how to troubleshoot the most common error that may occur during the configuration of the Web UIs.

Mostly after installation of the Web Screens, it is necessary to configure the ‘PORTAL’ in the database setup screen. But when user tries to configure the PORTAL in the database setup they might come across the error : “Error. Failed to create landlord database tables

Please refer the below screen shot.
Sage 300 Web Screens configuring errorBelow are few points that can be followed to overcome the error:

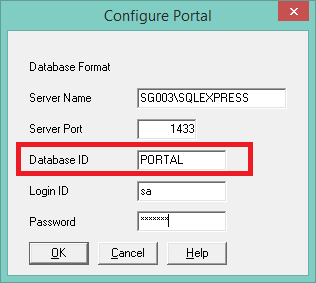

1. Verify “PORTAL” Database ID on SQL server:

Before proceeding to verify other points, please make sure you have created the PORTAL database. This PORTAL database later needs to be specified in the database setup during the configuration of the Web UIs. Hence, it is the basic step to look out for this error.

portal tab portal database id

 2. Check whether the SQL services are running on the server:

Once you have created the “PORTAL” database on SQL server, and still if you are facing the same error, ensure if the SQL services are in running status.

To do this, you can follow below steps:
a. Get access to your database server either by logging into to console or initiating a Remote Desktop Protocol (RDP) session to the server.

b. To check the services, enter ‘services.msc’ in RUN command and click on enter to open the Services Management as shown below :

Error while configuring the Sage 300 Web Screens

The highlighted service should indicate that their status is ‘Running’ and Startup Type is set to ‘Automatic’.

c. You can start/re-start this service by right clicking on the SQL Server service and choosing ‘Start’ or ‘Restart’ as highlighted below.

If the SQL Server service is not shown as ‘Running’ you have more likely found the root of your problem! But still you can look out for below option if the error persists.

3. Verify whether the Port number for SQL server database engine is defined:

To assign a TCP/IP port number to the SQL Server Database Engine.

a. In SQL Server Configuration Manager, in the console pane, expand SQL Server Network Configuration, expand Protocols for <instance name>, and then double-click TCP/IP.

sql server confiduration manager

In the TCP/IP Properties dialog box, on the IP Addresses tab, several IP addresses appear in the format IP1, IP2, up to IPAll.

TCP IP Properties

b. In the IPn Properties area box, in the TCP Port box, type the port number you want this IP address to listen on, and then click OK.

c. Restart the SQL Server and SQL browser services to take the effect.

Once you are done with the above steps try to reconfigure the Web UIs and it should connect without any problem.
