How to use Hierarchical List functionality in Object browser

By | September 29, 2015

Sage X3 provides us left Selection List functionality so as to select the content in the screen. The data displayed on the left list are always a single record irrespective of number of detail lines; this is achieved by attaching the header table to the object.

New Stuff:How to mandate Dimension Types in any transaction wherever required at company level

But, there may be certain scenarios where we refer the “detail” table in the object and still want to display one record in the left list even if there are more than one details line exist for that record. To achieve this follow the below steps,

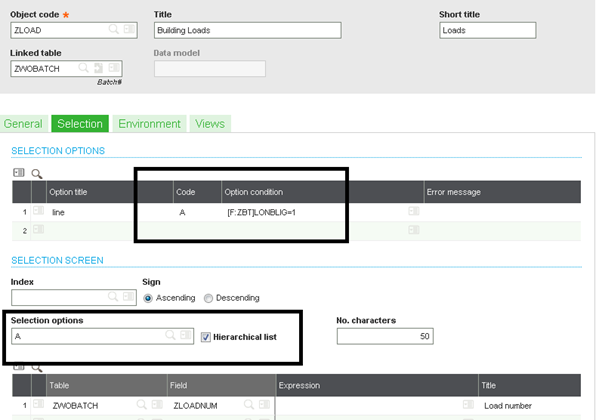

  1. Navigate to Development > Script dictionary > Objects. In ‘Selection’ tab, select a field having unique value for a particular transaction and enter the condition in “Option Condition”.
  2. Set Selection options as “Code” value and check “Hierarchical list” checkbox. Kindly refer to the below screenshot.


  1. Then, Navigate to Development > Script dictionary > Windows. Under the ‘Browser’ tab, set “List type” as “Hierarchical”. Refer the below screenshot.


Hope this helps.
