Automatic Product Code and Description generation from the User Input

In Sage X3, user can create products manually by setting the product code sequence and entering description for the same product in the product master. But now we have added a customization for automatic Product Code and Description generation to fulfil the client’s requirement. In this customization we have used one standard field “Product Line” which is already available in the product master.

New Stuff: How to trigger mail with Payment Voucher report attachment on posting the Payment entry

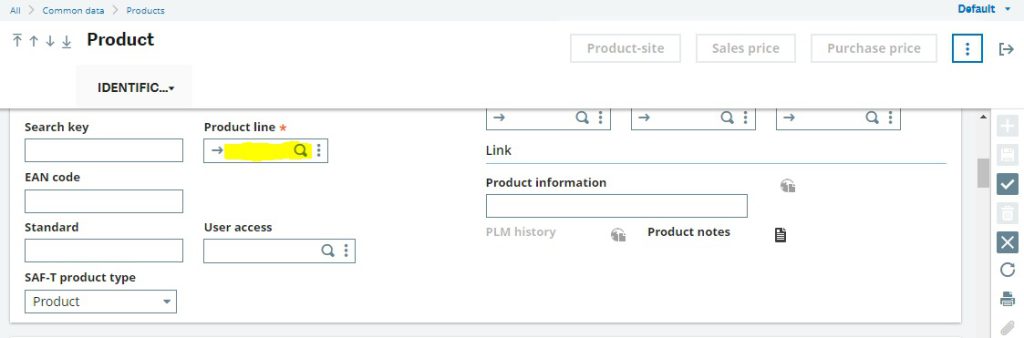

[Fig 1. Product Line field]

In the Product Line selection, you will get 4 options – CN/FG/PM and RM after clicking on the finder.

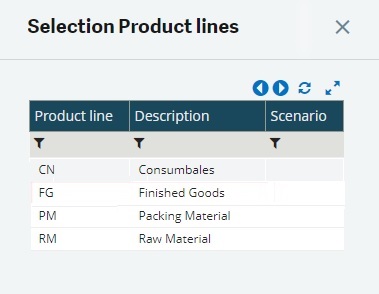

[Fig 2. Product Line options]

For each option selected in the product lines, below are the attributes:

1. Product: 2 characters (FG/RM/CN/PM)
2. Category: 2 characters (HP/NB/SW/SP/WR/TW/SB/NA)
3. Product TYPE: 3 characters numerical (Sub category of Category, with serial nos. as 001/002)
4. Color: Color codes in 3 characters. For example BLK/BLU/GRN/RED etc.

The Product code generation process is as mentioned below:

1. For RM/PM/CN Type Products:
   With the combination of Type, Category, Product and Color, sequence number will be generated with the product code.

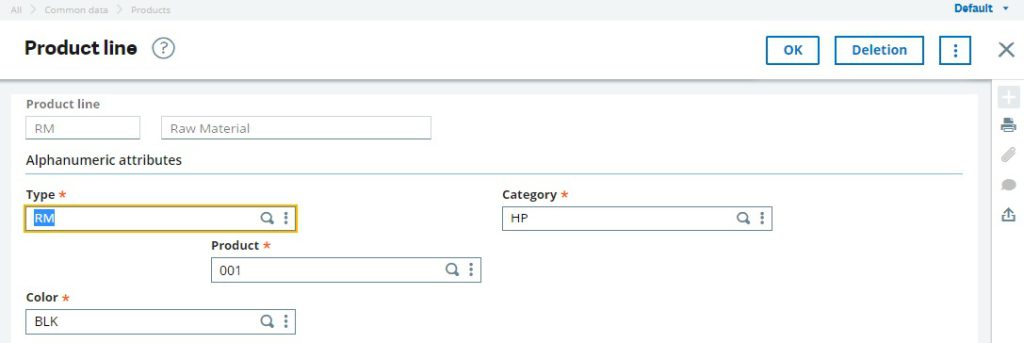

[Fig 3. User Input in Product Lines for RM]

Suppose we have selected values in the product line for RM as shown in the above screenshot. Then for the above case, the product code will be RMHP001BLK_00001 and so on i.e. concatenation of those 4 product line fields and 5 characters sequence no, as shown in the below screenshot.

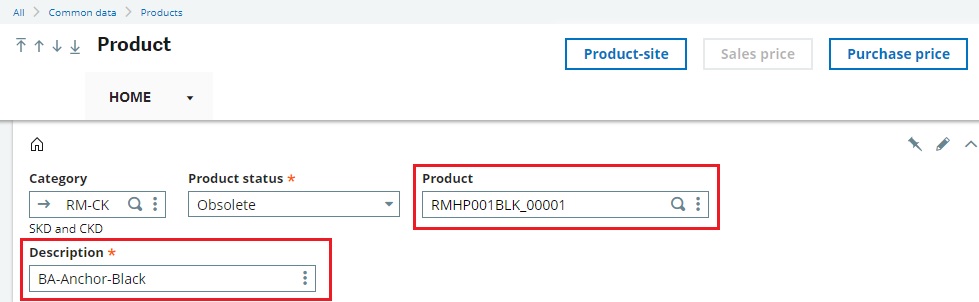

[Fig 4. Generated Product Code and Description for RM]

Now, Product description must be auto set for RM/CN/PM products. Logic for description generation is – First 3 characters ‘BA-’ are fixed then description for product line with selection of “Product” and “Color” will be considered.

For Example – Description of 001 product is “Anchor” and Description of color BLK is “Black” therefore description generated for the Product Code “RMHP001BLK_00001” is “BA-Anchor-Black” as shown in the Fig. 4.

Sequence number will be incremented automatically by 1 if user has selected the same combination again i.e. if user has selected same combination of Type, Category, Product and color as shown in the Fig.3 for the second time, then product code will be generated as RMHP001BLK_00002.

2. For FG Type Products:
   The series will not have sequence number. Only combination of Type, Category, Product and Color will be considered for product generation.

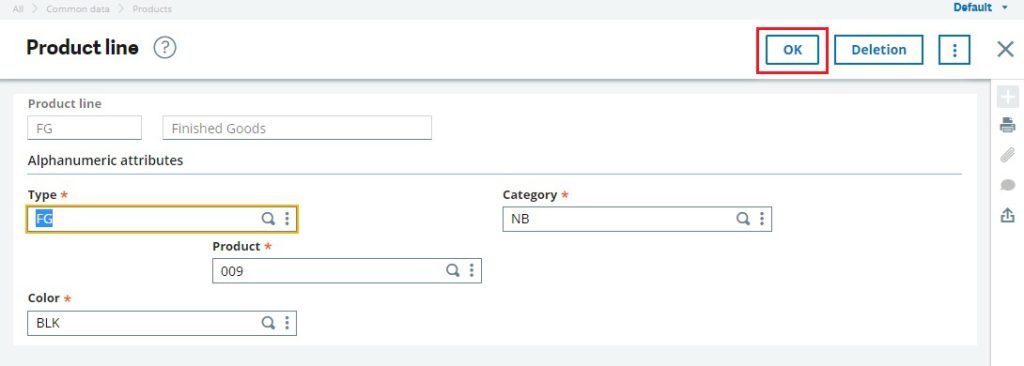

[Fig 5. User Input in Product Lines for FG]

Suppose we have selected values in the product line for FG as shown in the above screenshot. Then for the above case, the product code will be FGNB009BLK i.e. concatenation of those 4 product line fields only, as shown in the below screenshot.

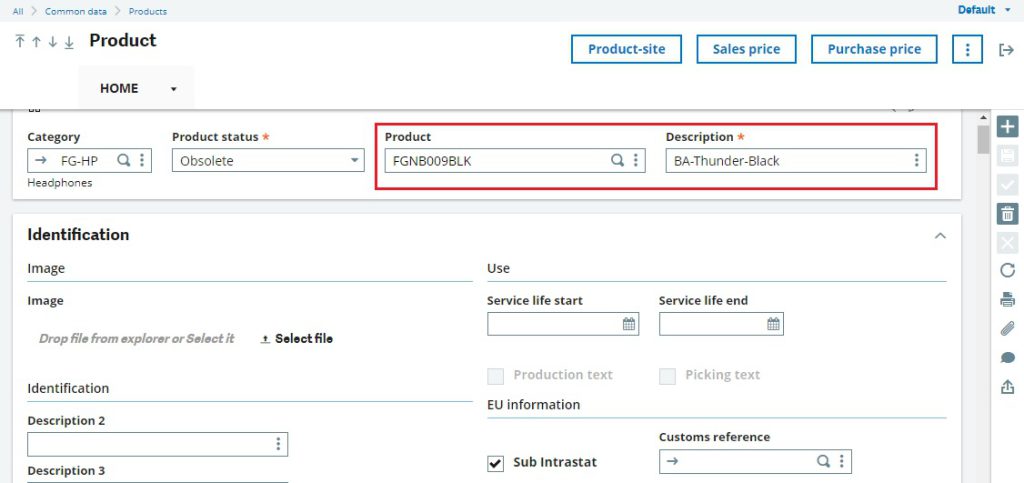

[Fig 6. Generated Product Code and Description for FG]

Now, Product description generation logic for FG will remain same as we have done for RM/CN/PM Type products i.e. First 3 characters ‘BA-’ are fixed then description for product line with selection of “Product” and “Color” will be considered.

For Example – Description of 009 product is “Thunder” and Description of color BLK is “Black” therefore description generated for the Product Code “FGNB009BLK” is “BA-Thunder-Black” as shown in the Fig. 6.

So, on the basis of product line selection Product Code and Description will be generated automatically with different combinations.
